| Quantity: | |
|---|---|

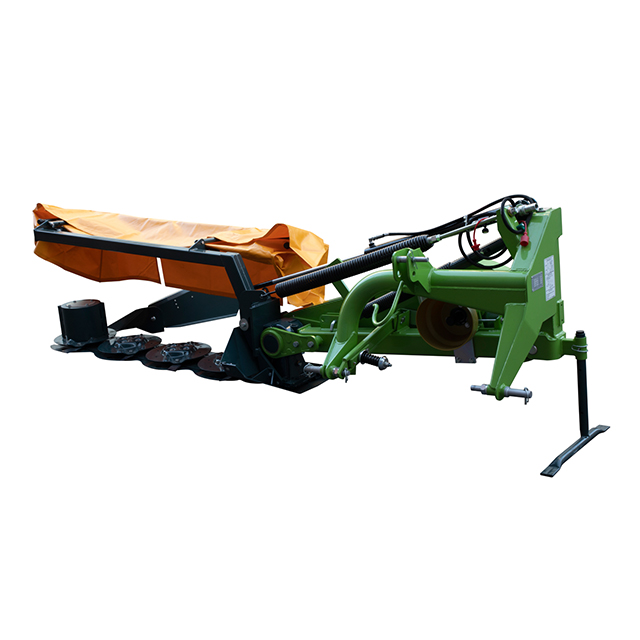

MDM1700 Disc Mower mainly is used for the harvesting of all kinds of forage, for example: alfalfa, ryegrass, oats etc. It has very high efficiency, suitable for heavy and high crops than reciprocating mower. Adjust attachment is installed on the cutter-bar, which makes cutter-bar is easily to be up and down. two springs are hanged on the side of cutter-bar, which can adapt the situation of concave-convex ground and doesn’t destroy the grass ground. round disks and saft guards can protect the mower body and knives are not to be cracked with stones and barriers directly.
Basic Info
| Model | MDM1700 |
| Cutting Width | 165cm |
| Overall Dimensions(cm) LxWxH | Working:330x163x87cm |
| Transporting:143x169x183cm | |
| Weight(kg) | 410kg |
| Disc Qty | 4 |
| Knife Qty/Disc | 2 |
| Working Speed(km/h) | 4-10km/h |
| Matched Power (kw/hp) | 35-80 |
Highlights
1. Reliable Italy Totally Imported Original Cutter-bar
Reliable totally imported original cutter-bar guarantees high performance , long service life and the gears are not easy to bad.
In order to reduce the cost, the current market is almost full of elliptical mowing discs, the fact proves that the disadvantage of elliptical mowing discs is the knives directly collide with the stones in the field, and the knives are very easy to be broken. At the same time, because of the high frequency of impact on the machine, the gearbox usually happens oil leakage, it also reduces the stability of the cutter-bar.
Elliptical mowing discs (mainly product in the current market)
Our round discs(Italy imported cutter-bar)
Our round discs can effectively clean the stones in the field , it protects the body of cutter-bar and the knives are not to be impacted directly by the stones or other obstacle. The material of Italy cutter-bar is Swedish Steel which has excellent wear resistance, toughness and rigidity. So our disc mower has longer service time and lower failure rate, Stable performance.
2. Efficient Cutting
The blades adopt special shape of spiral edge and undergo special heat treatment to achieve good cutting result.
3. Hydraulic Equipment
It makes the Disc Mower to raise quickly for turning or transport fold in 90-degrees.
