Product Specifications
| Model | 2FS-600 | 2FS-1200 | |
| Operating Model | Double-Disk | Double-Disk | |
| Centrifugal Spreader | Centrifugal Spreader | ||
| Hooper Capacity | 600L | 1200L | |
| Working Width | Crystalline | 6-12m | 6-12m |
| Working Width | Granular | 12-24m | 12-24m |
| Sowing width | Not adjustable | ||
| Spreader Regulate Device | 18 Gear Position Regulators | 18 Gear Position Regulators | |
| Working Speed(km/h) | 3-10km/h | 3-10km/h | |
| Matched Power (kw/hp) | ≥33kw/45hp/ ≥51.5kw/70hp | ≥33kw/45hp/ ≥51.5kw/70hp | |
| PTO Shaft Speed (r/min) | 500-540r.p.m. | 500-540r.p.m. | |
Highlights
1.High Efficiency
The machine through the tractor after the output power, through the drive shaft so that the fertilizer plate high-speed rotation, the fertilizer evenly spray out. And it has the characteristics of good maneuverability, simple structure, easy operation, uniform seeding and reliability.
2.Reversible Plastic Hopper
Configuration reversible plastic hopper is corrosion resistant and rotatable so as to conveniently dump and clear the fertilizer.The maxmum capacity of this hopper can choose 600kg or 1200kg according the user requirement.
3.Stainless Steel Filter
Bottom of hopper with specially stainless steel filter can prevent some large other things into spreading gear to avoid any jam.
4.Widely working width
The extra-working widths of double disk centrifugal spreader can up to 12-24m to achieve the desired effect according to the amount of land fertilization, when granular fertilizer is applied.
5.Adjust Devices with 18 Kinds of Specification
The adjust devices is designed with humanization, can be adjusted the size of the hole according to the different fertilizer output requirements of the end user. It also reduce the waste, improve operational efficiency.

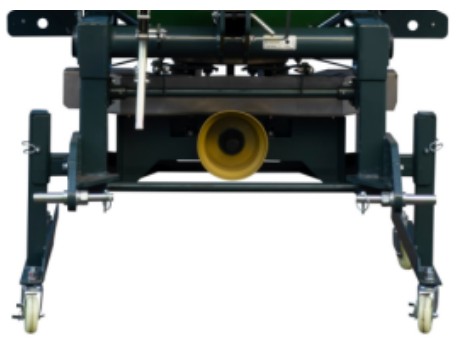

6.Pulley Support
Our fertilizer spreader equipped with pulley support for easy connect the tractor, storage and moving in the warehouse.
Product Specifications
| Model | 2FS-600 | 2FS-1200 | |
| Operating Model | Double-Disk | Double-Disk | |
| Centrifugal Spreader | Centrifugal Spreader | ||
| Hooper Capacity | 600L | 1200L | |
| Working Width | Crystalline | 6-12m | 6-12m |
| Working Width | Granular | 12-24m | 12-24m |
| Sowing width | Not adjustable | ||
| Spreader Regulate Device | 18 Gear Position Regulators | 18 Gear Position Regulators | |
| Working Speed(km/h) | 3-10km/h | 3-10km/h | |
| Matched Power (kw/hp) | ≥33kw/45hp/ ≥51.5kw/70hp | ≥33kw/45hp/ ≥51.5kw/70hp | |
| PTO Shaft Speed (r/min) | 500-540r.p.m. | 500-540r.p.m. | |
Highlights
1.High Efficiency
The machine through the tractor after the output power, through the drive shaft so that the fertilizer plate high-speed rotation, the fertilizer evenly spray out. And it has the characteristics of good maneuverability, simple structure, easy operation, uniform seeding and reliability.
2.Reversible Plastic Hopper
Configuration reversible plastic hopper is corrosion resistant and rotatable so as to conveniently dump and clear the fertilizer.The maxmum capacity of this hopper can choose 600kg or 1200kg according the user requirement.
3.Stainless Steel Filter
Bottom of hopper with specially stainless steel filter can prevent some large other things into spreading gear to avoid any jam.
4.Widely working width
The extra-working widths of double disk centrifugal spreader can up to 12-24m to achieve the desired effect according to the amount of land fertilization, when granular fertilizer is applied.
5.Adjust Devices with 18 Kinds of Specification
The adjust devices is designed with humanization, can be adjusted the size of the hole according to the different fertilizer output requirements of the end user. It also reduce the waste, improve operational efficiency.
6.Pulley Support
Our fertilizer spreader equipped with pulley support for easy connect the tractor, storage and moving in the warehouse.
