In October 2023, the “Star" round baler became the focus of Wuhan International Agricultural Machinery Exhibition with its exquisite craftsmanship and excellent performance. “STAR” round baler can efficiently pick up and compress hay and straw into tight round bales, making it easy to store and transport. In addition, the equipment is equipped with an advanced control system that can achieve automatic binding and unloading, improving the convenience and safety of operation. At the exhibition site, The “STAR” round baler attracted the attention of domestic and foreign customers. The customers from India, Thailand, the United States, Vietnam, and Africa showed a strong interest in the equipment and conducted in-depth exchanges and discussions with the manufacturer of “STAR" round baler.
If you are not satisfied with cheap but inferior quality mini round baler, please choose us, we promise we will supply extremely excessive cost performance mini round baler to you.
Product Description
Product Specifications
| MODEL | 9JYD-50(MRB0850) | 9JYD-60(MRB0870) |
| Bale size Diameter*Width(cm) | 50*70cm | 60*70cm |
| Baler Size(cm) | 115*130*120cm | 130*130*135cm |
| Weight(kg) | 390 | 440 |
| Pickup width(cm) | 70.5 | 70.5 |
| The Number of Row Tines | 4 | 4 |
| Working Speed(km/h) | 2~5 | 2~5 |
| Matched Power (kw/hp) | 22.1~36.7/30~50 | 22.1~36.7/30~50 |
| PTO Shaft Speed(r/min) | 540 | 540 |
Product Introduction
(1) 30~50 horsepower tractor is used for traction; the body is flexible, and the transition is convenient.
(2) The picker adopts spring-tooth pick-up, which has excellent picking effection and low loss rate of forage grass; picks up smoothly, does not disturb the grass strips, and reduces the rubbing and collision loss of forage grass.
(3) The side guards of the pickup are conducive to the gathering of the straw.
(4) The transmission device is arranged axially symmetrically, with a low center of gravity and good stability.
(5) The rope feeding mechanism adopts the worm gear reducer to drive the action of the four-bar linkage mechanism, which is dependable in action and high in the bundle rate.
Benefits for buyers
1)Have a full set of after-sales service system, worry-free after-sales, solve customer problems after use
2)When the baler is working, it can automatically lead the rope, automatically pick up the wheat straw, automatically bale, and automatically cut the rope, saving the buyer's time and improving the baling efficiency
3)Adjust the rope
loop and bale density when baling, so that the bale is not scatter or messy, the formed bale is small and
compact, and has good air permeability, which is convenient for
buyers to transport and store.
4)Convenient loading, unloading and transportation, saving labor
After-sale service
1)12-month warranty
2) Shipping status of baler is tracked
3) Working videos & instructions are provided
4) During the warranty period, baler parts are delivered in 3-7 days
5) Technical support is offered in time
6) 24 hours service
Baler Highlights
1. Easy Handling Bale
When the moisture of the herbage is below 20%, the weight of bale is up to 28kg. If we baled wet herbage ,then the bale weight is expected to reach 30kg—40kg.Not only that ,the size of bale is very small for easy to handle.
Two adult men who weight are over sixty-five kilograms stood on a bale, that the bale was still not loose.
| MRB0850 | MRB0870 | |||
| Moisture Content of Herbage | Wet | 20% | Wet | 20% |
| Weight (kg) | 35kg | 22kg | 50kg | 30kg |
| Size | 70cm x50cm x70cm | 70cm x 60cm x70cm | ||
| (L*W*H)cm | ||||
2. Pump
Brand: STAR
We developed special pump for round baler, it has good sealing performance and long service life.
We only use Mobil VG-46 hydraulic fluids to keep the perfect performance in challenging environment.
3. Surface Spray
our machine surface uses the high quality of AkzoNobel powder to spray. So the surface is more shining and able to stand the change of temperature and humidity ,not easy to get scratch and more durable.It is also very environmentally friendly.
4. Clutch and special double seal bearing
The pick-up AS has a unique design, use special clutch for force feed the material into the chamber to avoid any jam. The main function is to effectively prevent clogging and improve the work efficiency.
Special double seal bearing has perfect sealing performance to protect tine bars normal operation in harsh environment.
5. Transpot chain:
1.With high strength chains, the service life is prolonged, and high collection efficiency.
2.Users need not to replace chain often, thereby saving the cost of use.

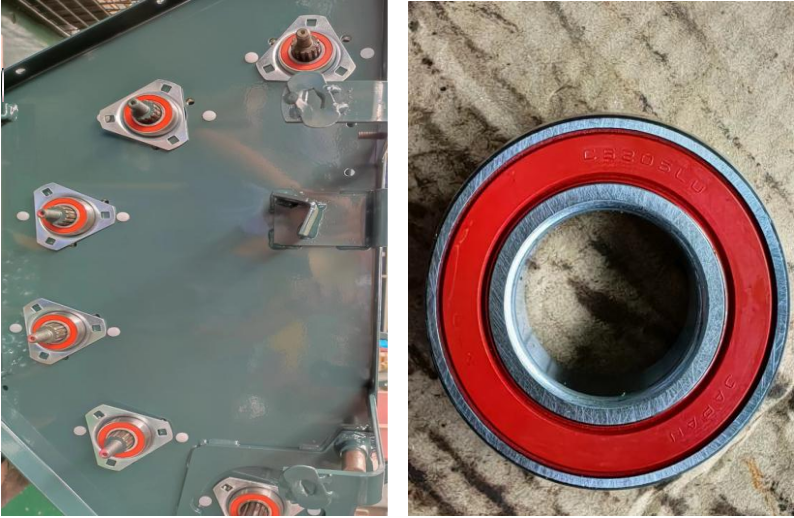

6. Bearing
Brand: NTN
The machine adopts the high strength bearings which it is a world- famous brand of NTN.High Accuracy, Erosion and wear resistance strong anti-tremor, free of maintenance, long service life. No electric sparks, safe and trustiness, convenient installation.
7. Rotor Flush
We made all rotor flushes with immense thickness for strength. They are not easy to break and good abrasion resistance.
8. welding Roller
1.Rollers in the current market are made by hot-extubate in low cost, but the defects of this processing method are the large amount of deformation and low precision due to too thinness tube .we adopt to weld two pieces press rollers by robot, even the cost is very high, but this processing method can keep the ditch of roller in very small deformation and the gap of every roller is same, we also adopt 2 rollers with high ribs out of 10 rollers, this structure makes high density bale can be rolled.
2.Exceptionally durable steel rollers are adopted for the compression system, power fluctuation is less than others mini round baler, stable and noiseless operation can be expected.
| Item | MRB0850 | MRB0870 |
| the quantity of roller | 10 | 12 |
| high gluten | 2 | 3 |
9. Shaft
Our machine adopts the drive shaft which it is an internationally renowned brand. The two ends of the shaft are quick bayonet-locks for convenient installation and maintenance.
10. Safety Device
The gearbox output is protected by shear bolt. When overload occurs, shear bolt will cut itself and protect the machine from damage.
Factory View
We are delighted to show our factory. Here, you will see a highly organized and efficient production environment. manufacturing factory.

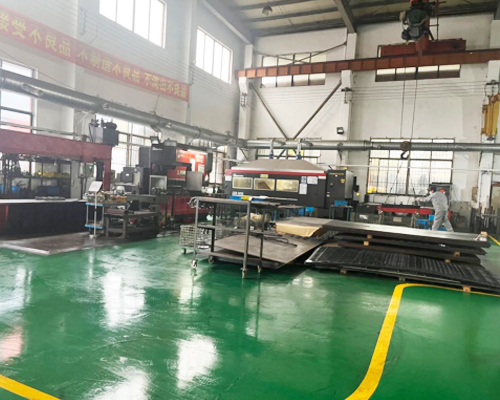

Lase machine, bend machine, hydraulic press machine
CNC drill machine
The storage of row meterial
We only use Baosteel plate which is the best material come company in China.
The storage steel pipe and bar
The view of welding line（robort welding and handle welding line）
The view of Welding clipper stock
The view of Assembling line
The test of round baler
The front of STAR mini round baler
The side of STAR mini round baler
The back of STAR mini round baler
The Chinese government’s agriculture machinery promotion certification
Automatic operation mini round baler

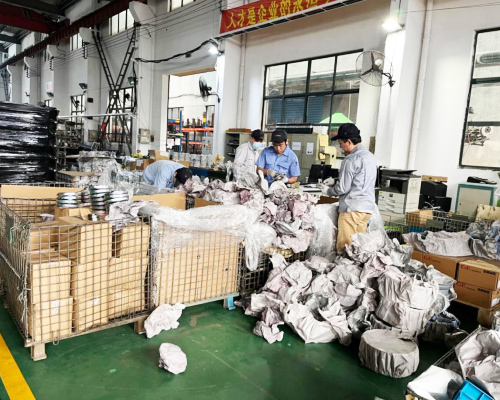

The daily view of inspection spot
We promise we don’t accept defective products and don’t release the defective parts, so we inspect every part from suppliers and the parts we produced.
Inspect of parts surface
2023 Wuhan international exhibition
